Creating an Underwater Effect in ActionScript

ActionScript is very well suited to creating old-school demo effects due to its rich drawing API and absence of memory management. Speed would have been a concern a few years ago, but as long as you’re not replicating Heaven7, current releases of Flash player should still be able to handle complex animations with minimal performance problems.

Let me show you a simple wave effect, reminiscing of looking at an object through a wall of water.

Demo effects require a program structure that redraws the entire screen several times every second. The faster the screen refresh, the smoother the resulting animation, at a commensurately higher computation penalty. While traditional languages like C require some kind of a timer mechanism, Flash abstracts away the timers into a frame-rate. We can set up a handler to listen to the ENTER_FRAME event and refresh the screen every time it is triggered.

Demo effects implemented in C often use direct access to the display hardware for performance reasons. Since Flash does not provide direct access to physical devices, we must settle for using the BitmapData class as our drawing buffer and optimize our code within the bounds of its API.

But before we get around to simulating our effect, let us first spend some time understand the principles behind how it is created.

The Sine Wave

A sine wave is mathematical function that plots a smooth, repetitive oscillation and is represented in its simplest form as y(t) = A · sin(ωt + Φ) where A is the amplitude or peak deviation of the function from its centre position, ω is the frequency and specifies how many oscillations occur in a unit time interval in radians per second and Φ is the phase, which specifies where the oscillation cycle begins when t = 0.

With this information we can create a simple function to plot a sine wave.

public function Draw(e:Event):void
{
    var x1:Number = -1;
    var x2:Number = -1;
    var y1:int = -1;
    var y2:int = -1;
    var amplitude:Number = 120;
    var frequency:Number = 1 * Math.PI / 180; // Convert degree to radians

    for (x1 = 0; x1 < 320; x1++)
    {
        y1 = Math.round(amplitude * Math.sin(frequency * x1)) + 120;
        DrawingUtils.lineBresenham2(this.m_bd, x1, y1, x2, y2, 0xFF000000);
        x2 = x1;
        y2 = y1;
    }
}

This movie requires Flash Player 9

We use the Bresenham line drawing algorithm instead of setPixel to plot the curve on the bitmap for better fidelity.

Image A: The image is taller than the red viewport

Creating Waves with Images

The same principles can be used to create a wave effect on an image. Instead of plotting points on a canvas, columns of an image are scaled up or down depending upon the shape of the wave. The image is scaled down at points where the wave forms a crest and scaled up wherever the wave forms a trough.

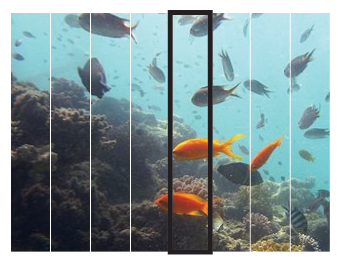

Image B: Extract a single vertical slice

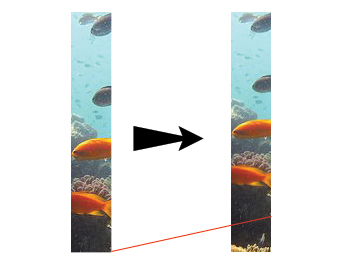

Image C: Scale the extracted portion

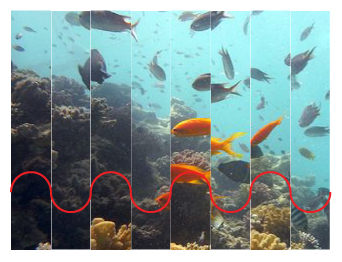

Image D: Paste the slice back into the image

Because of the scaling required, the image we use is larger than the viewable area. Image A illustrates this. The red outline is the viewable area of our movie, whereas the image used is taller than that. If the image is not tall enough you will see white patches at the bottom of the movie when the animation begins.

Each time the screen is to be refreshed, the function cycles over all the columns in the image. The columns are 1 pixel wide in the movie, but for illustration, image B shows the columns as 40 pixels wide. Image C shows how the extracted image column is then scaled down.

When all images are placed next to each other, they appear to make a wave, as shown in image D. While the effect looks very blocky in this illustration due to the wider column widths used, thinner columns used in the final movie give a smoother output.

Further fine-tuning can be done by changing the wavelength of the sine wave. A large value is used in the example below, causing all the columns in the image to shrink and expand at almost the same rate. A smaller value used in its place would have caused a broad discrepancy in the scaling values for each column. Having columns with both large and small values in the same frame would cause a wider range of distortion in the image, and speed up the motion. Effectively, frequency can be used to increase or decrease the speed of the animation, simulating choppy or calm waters as needed.

The function we use is as shown below.

public function Draw(e:Event):void
{
    var img:int;
    var wd:int;
    var y:Number;
    var mx:Matrix;

    for (y = 0; y < 240; y++)
    {
        img = 0;
        wd = Math.round(Math.sin(aa) * 20) + 320;
        mx = new Matrix();
        mx.scale(1, wd / 320);

        this.m_bd.draw(this.m_rg[img], mx, null, null, new Rectangle(0, y, 320, 1), true);
        aa += 0.01;
    }

    aa = ab;
    ab += 1 * Math.PI / 180;
}

This movie requires Flash Player 9

Underwater in Egypt used under CC from http://www.flickr.com/photos/ehole/ / CC BY 2.0

The only difference we need to make in our scaffolding code is to call the Draw effect repeatedly when trying to animate the wave effect, whereas drawing the sine wave can be done by calling the function just once on startup.

The entire codebase with both the effects and scaffolding code is available for download here. To change the effect shown, change the value of the m_fxName variable in Main.as to either SineWave or WaveEffect. New effects can be added by extending the BaseEffect class and changing the value of the m_fxName variable to the newly created class name.

Mathematical Elegance in Programming

Project Euler is a collection of mathematical problems for the programmer who enjoys taxing his brain cells once in a while. The problems are ordered to be successively difficult to solve, which explains why, as of today, 91,510 people have solved problem one, while problem 283 is solved only by 9 people. Not only are they successively more taxing, but going through so many problems itself is a tedious task that requires mental stamina even when taken in installments over several days.

Understanding the sum of numbers from 1 to N

Diagram A

Diagram A shows a square with each side 10 units long. A green diagonal cuts the square into two equal triangles. The number of squares making up the square equals 10 x 10 = 100.

Diagram B shows one half of the triangle, whose base and height are 10 units for a total of 55 cells. The number of cells can be calculated by adding the number of cells in each column, i.e. 10 + 9 + 8 + 7 + 6 + 5 + 4 + 3 + 2 + 1 = 55.

A similar blue triangle is placed above the red triangle in diagram C, in a way that both triangles are touching but do not overlap. Both triangles encompass 55 units and have sides of 10 units each. They combine to make a rectangle that is 10 units wide and 11 units tall. The total number of cells in the rectangle is 55 + 55 = 10 * 11 = 110.

Diagram B

Thus it can be seen how the total number of cells in one triangle (i.e. N + (N – 1) + (N – 2)…+ 1) can be computed by calculating the area encompassed by a rectangle that is N * (N + 1) and dividing the result by 2.

Thanks Reddit!

The good part is that solving a problem helps an individual build an insight that is useful while solving another one later down the line.

The first problem in Project Euler asks to add all the natural numbers below 1000 which are multiples of 3 or 5. The straightforward way to resolve this is to use a loop from 1 to 999 that uses a modulus operation to evaluate each integer between 1 and 1000 with 3 and 5, adding the ones that are perfectly divisible and discarding the rest.

Diagram C

Here’s an implementation of this code in ActionScript.

var sum:uint = 0;
for (var i:uint = 1; i < 1000; i++)
    if ((0 == i % 3) || (0 == x % 5)) sum += i;
trace(sum);

But the secondary goal of these problems is to have an implementation that can return an answer in less than one minute. Problem one is not all that taxing for a modern computer, making even a naïve implementation run well within the required time frame. But complexity for later problems increases exponentially, making the selection of a fast algorithm very essential.

Hence, it is required that one should understand the mathematical principle behind each problem in order to write an efficient solution.

A step-by-step breakdown of the complex, but more efficient solution goes as follows.

The smallest multiple of 3 greater than 1 is 3 itself.

The largest multiple of 3 less than 1000 can be computed easily.

multiples = (1000 - 1) / 3
multiples = 333.33
multiples = floor(remainder)
multiples = 333

The floor() function is used to discard the decimal part of the result by mapping the real number into the previous smallest integer.

The result, 333, is the number of multiples of 3 between 1 and 1000. So the sum of these values can be computed by adding the multiples together.

(1 * 3) + (2 * 3) + (3 * 3)...+ (333 * 3)
= 3 (1 + 2 + 3...333)

The sum of numbers between 1 and n is n (n + 1) / 2. So the sum of 1 to 333 is 333 (333 + 1) / 2, which is 55,611. Multiplying that by 3 gives you 166,833, which is the sum of all multiples of 3 between 1 and 1000.

The same method can be used to compute the sum of multiples of 5 between 1 and 1,000, to get a result of 99,500.

The problem asks to compute the sum of multiples of 3 or 5. What we have done so far is compute the sum of multiples of 3 and 5. To remove the overlap between the two sets, compute the least common multiple of the two numbers, which is 15, and calculate the sum of multiples of that number between 1 and 1000. Subtracting that set from the first two will result in a set which contains numbers which are either multiples of 3 or 5 but not both.

The same principle also applies when the sum of multiples of 15 is deducted from the sum of multiples of 3 plus the sum of multiples of 5.

So your final solution is sumOfMultiples(3) + sumOfMultiples(5) – sumOfMultiples(15).

The complete implementation of the program is as follows.

package
{
    import flash.display.Sprite;

    /**
     * Project Euler solutions entry point
     */
    public class Main extends Sprite
    {
        public function Main():void
        {
            var p:IProblem = new Problem1();
            trace(p.solve());
        }
    }
}

package
{
    /**
     * If we list all the natural numbers below 10 that are
     * multiples of 3 or 5, we get 3, 5, 6 and 9. The sum
     * of these multiples is 23.
     *
     * Find the sum of all the multiples of 3 or 5 below 1000.
     */
    public class Problem1 implements IProblem
    {
        public function solve():uint
        {
            var limit:uint = 999;
            trace((sumOfMultiples(3, limit) + sumOfMultiples(5, limit)) - sumOfMultiples(15, limit));
        }

        private function sumOfMultiples(factor:uint, limit:uint):uint
        {
            return factor * sum1toN(limit / factor);
        }

        private function sum1toN(n:uint):uint
        {
            return Math.round((n * (n + 1)) / 2);
        }
    }
}
